JW2SN-DC5V -

Relay; E-Mech; Power; DPDT-NO/NC; Cur-Rtg 5A; Ctrl-V 5DC; Vol-Rtg 250/30AC/DC; PCB Mnt

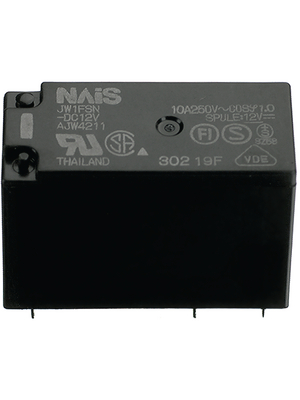

Panasonic JW2SN-DC5V
声明：图片仅供参考，请以实物为准！
制造商产品编号：
JW2SN-DC5V
仓库库存编号：
70158620
技术数据表：
View JW2SN-DC5V Datasheet Datasheet
订购热线： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

JW2SN-DC5V产品概述

PC Board Power Relays
  • Miniature package with universal terminal footprint
  • Sealed construction
    The mounting type is PCB mount.

    • JW2SN-DC5V产品信息

      Application  Used in TV sets, VCR, microwave ovens, photocopiers, vending machines, NC machines, robots and temperature controllers
      Brand/Series  JW Series
      Coil Resistance  47 Ohms
      Contact Form  DPDT
      Contact Resistance  100 MegOhms
      Current Rating  5 A
      Dimensions  1.128" L x 12.8" W x 0.787" H
      Function  Power
      Material, Contact  Silver Alloy
      Mounting Type  PCB
      Number of Pins  8
      Power Rating  1250/150 VA/W
      Relay Type  Electro Mechanical
      Standards  UL, CSA, VDE, TUV
      Temperature, Operating  -40 to +85 °C
      Termination  Solder
      Voltage Rating  380 VAC
      Voltage, Control  5 VDC
